General

Manufacturer: Sony
Model: TA-N 9000 ES
Type: 5-channel surround power amplifier
Years of construction: 1998 - 2003
Manufactured in: Japan
Color gold
Remote control: no
Power consumption: 400W
Dimensions: 430 x 173 x 453 mm (WxHxD)
Weight: 24kg
Original price approx.: 250,000 yen (Japan, 1999), 3,900 DM


Technical specifications

continuous power
4 Ohm Surround: 5x 115 W (Klirr,

20Hz - 20kHz)

4 Ohm Surround: 5x 130 W (DIN)
Total Harmonic Distortion: Less than 0.013% (20Hz ~ 20kHz, 4 ohms)
BTL Mode (gebrückt): 2x 210 W (4 Ohm)
damping factor:
Frequency response: 20 Hz ~ 20 kHz ±0.2 dB (at lW) 10 Hz ~ 100 kHz +0 -3 dB (at lW)
signal-to-noise ratio:
Input Sensitivity: lV ±1dB


Special equipment

5-channel surround power amplifier
bridgeable (3/ 2-channel)


General

Manufacturer: Sony
Model: TA-E 9000 ES
Type: Surround preamp
Year of manufacture: 1998 -2003
Manufactured in: Japan
Color gold
Remote control:
Power Consumption: 72W
Dimensions: 430 x 150 x 387 mm (WxHxD)
Weight: 12.8kg
New price approx.: 3,200 DM

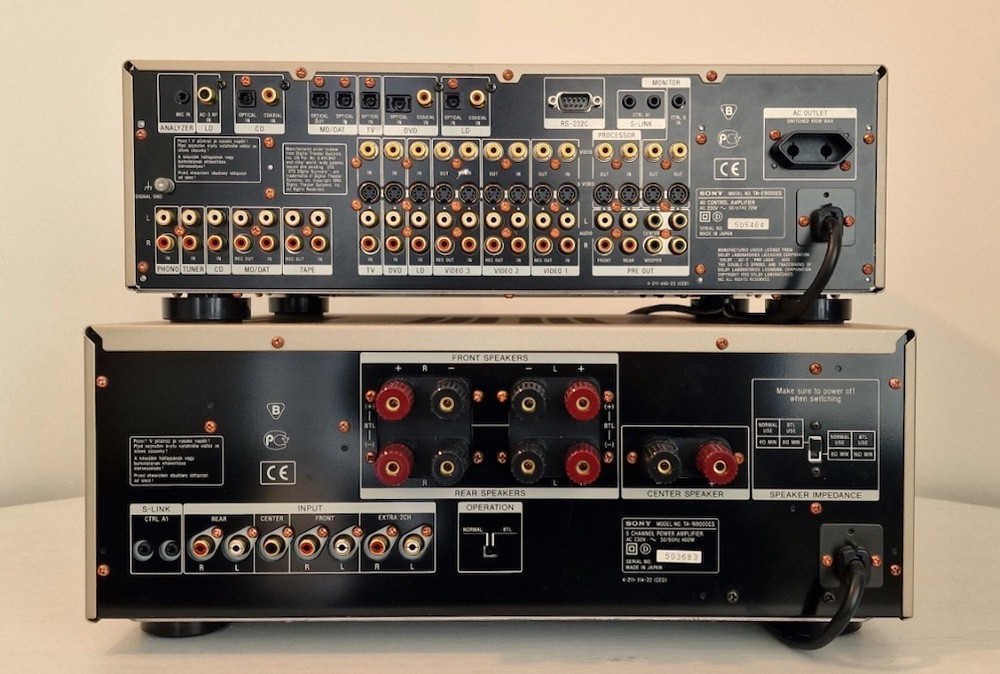

connections

Number of inputs (analogue):
PHONO: Sensitivity: 5mV; Impedance: 50k ohms
LINE( TUNER, CD, MD/DAT, TAPE, TV(TV/DBS), DVD, LD, VIDEO1, VIDEO2 and VIDEO3): Sensitivity: 250 mV; Impedance: 50k ohms
Inputs (DIGITAL)
DVD(Coaxial): Sensitivity: 0.5 Vpp; Impedance: 75 ohms
LD (AC-3 RF): Impedanz: 75 Ohm
LD (Coaxial): Sensitivity: 0.5 Vpp; Impedance: 75 ohms
CD (Coaxial): Sensitivity: 0.5 Vpp; Impedance: 75 ohms
MD/DAT
TV (TV/DBS)
LD (optical)
DVD (optical)
Outputs (Analog):
MD/DAT, TAPE(REC OUT), VIDEO1, VIDEO2, VIDEO3 (REC OUT): Spannung: 250 mV; Impedanz: 1 kOhm
PRE OUT (FRONT L/R, CENTER, REAR L/R, WOOFER): Spannung: 1 V; Impedanz: 200 Ohm
PHONES: For low or high impedance headphones
Outputs (digital):
MD/DAT (optical): Sampling frequency: 48 kHz


Technical specifications

Audio part:
Distortion:
