Frequency characteristic     10 Hz ~ 20 kHz ± 0.1 dB (except for Phono, front, equalizer / dynamics / surround off)
Signal-to-noise ratio
(A Network)     Phono : 84 dB (front / center / rear)
Tuner, CD, Tape1/2, Video1-5, LD, TV : 94 dB (front / center / rear)
Optical1 ~ 3, Coaxial : 103 dB (front / center / rear)
Residual noise     10 μ V or Less (A Network)
Total harmonic distortion factor
(front, 1 kHz)     Analog input : 0.004% or less
Digital input : 0.003% or less
<DSP Unit>
Ikoliza     Number of bands     Parametric 3-Band
Front, center and rear independently variable
Frequency     18 Hz to 20 kHz (1/9 octave setting)
Level Width     ± 12 dB per band in 0.1 dB steps
Slope (Q)     16 levels
Dynamics     Compressor     9 levels
Expander     9 levels
Surround     Room Size     16 levels
Wall     16 levels
Seat position     F-R : 101 stages
L-R : 101 stages
Effect level     0 ~ 100% (1% steps)
Reverb time     0.3s ~ 5.0s (0.1s Step)
Delay time     15.0 ms to 30.0 ms, 0.1 ms step
(Dolby Sa in a round)
Center level     + 10 ~ -60dB, - ∞ dB (1 dB step)
Rear level     + 10 ~ -60dB, - ∞ dB (1 dB step)
Early reflection time     2 ms ~ 500 ms (2 ms step)
Early Reflection Level     0 ~ 100% (1% steps)
Prologic decoder     ON/OFF
Separation control     11 levels
Input balance     Auto
<Converter Section>
A/D converter     High density linear converter system
Sampling frequency     48kHz
D/A converter     Advanced Pulse D/A converter
Sampling frequency     32 khz, 44.1 khz, 48 khz
<Others>
Pwer     100 VAC, 50Hz/60Hz
Power consumption     35W
Maximum external dimensions     Width 470x Height 150x Depth 355 mm
Side Wood Removal : Width 430 mm
Weight     8.5kg

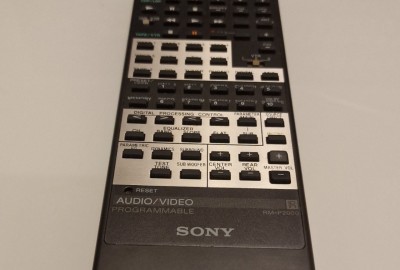

Attachment     Programmable Remote Controller RM-P2000
