Auction Details

Description

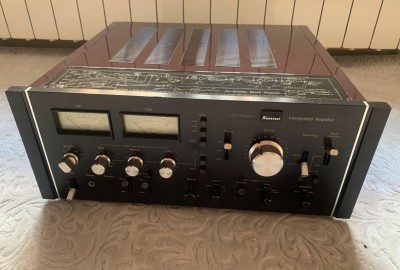

The Sansui AU-20000 is an integrated stereo amplifier delivering a continuous 170 watts, minimum RMS, per channel, both channels driven into 8 ohms, over 20 to 20KHz bandwidth - with no more than 0.05 % total harmonic distortion.

Features include:

Eight-transistor equaliser with differential amps at initial stage gives an improved dynamic response, for an extremely accurate RIAA equalisation curve.

Triple protection circuits; temperature, DC voltage and ASO detection.

Selectable phono sensitivity/impedance, and a versatile tape monitor circuit make the AU20000 flexible and capable of handling a variety of recording and playback combinations.

Specifications

Power output: 170 watts per channel into 8Ω (stereo)

Frequency response: 10Hz to 50kHz

Total harmonic distortion: 0.05%

Damping factor: 80

Input sensitivity: 3mV (MM), 130mV (DIN), 130mV (line)

Signal to noise ratio: 70dB (MM), 80dB (DIN), 80dB (line)

Channel separation: 55dB (MM), 60dB (line)

Output: 130mV (line), 30mV (DIN), 0.7V (Pre out)

Speaker load impedance: 4Ω to 16Ω

Dimensions: 460 x 178 x 400mm

Weight: 23.6kg
