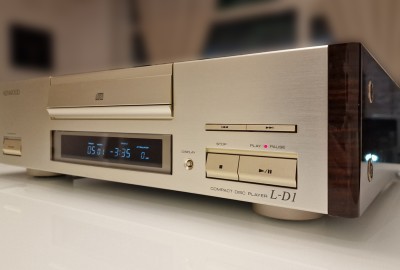

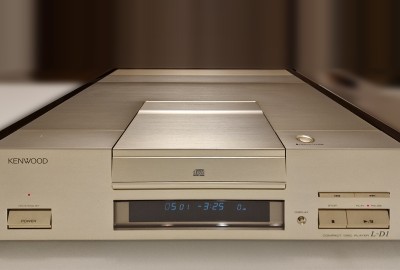

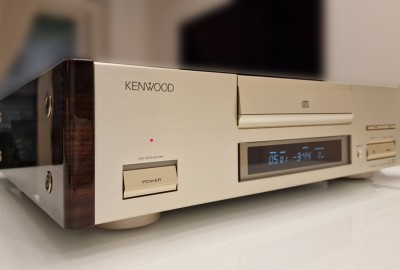

L-D1 CD player:

Number of revolutions  200 rpm ~ 500 rpm
Frequency characteristic  4 Hz to 20 kHz
Signal-to-noise ratio (EIAJ)  108 dB or more
Dynamic Range (EIAJ)  100 dB or more
Total Harmonic Distortion Factor (1 kHz, EIAJ)  Not more than 0.001%
Channel Separation (EIAJ)  100 dB or more

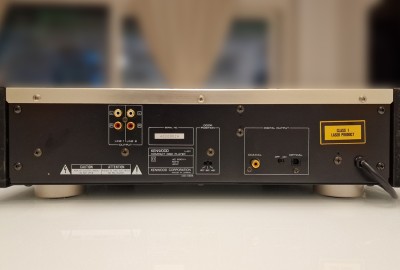

Output Level / Impedance  Variable Output 1, 2 : 2.5V/0.1 Ω
Digital Output (Coaxial) : 0.5Vp-p/75 Ω
Digital output (optical) : -15dBm to -21dBm at 660 nm
Power supply voltage  100 VAC, 50Hz/60Hz
Rated power consumption (Electrical Appliance and Material Control Law)  25W
Maximum external dimensions  Width 476x Height 128x Depth 430 mm
Weight  20.0kg

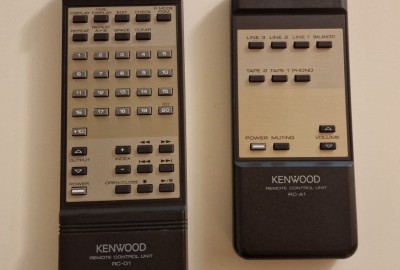

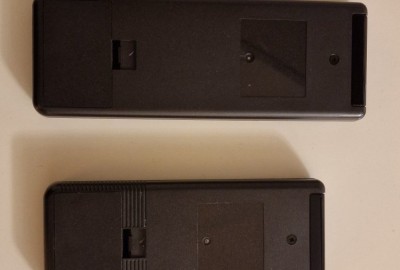

Attachment  Wireless Remote Control

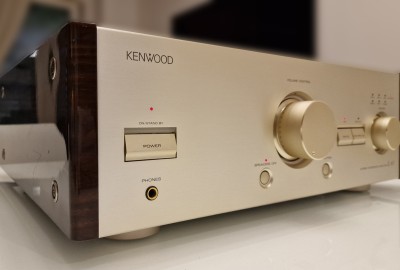

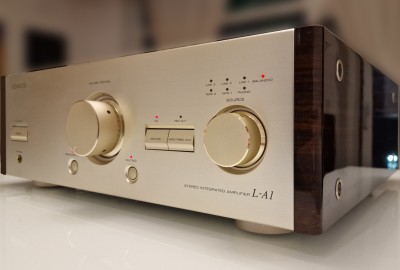

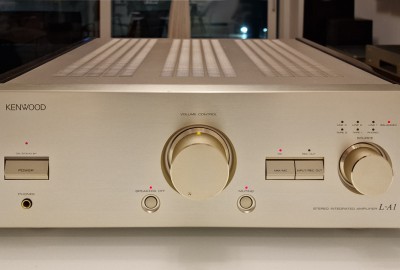

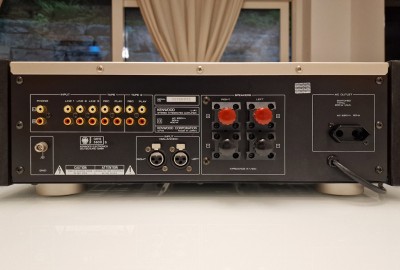

L-A1 integrated amplifier

Rated Output (20 Hz to 20 kHz, Both Channel Operation, THD 0.005%)  100W + 100W (8 Ω)
Total harmonic distortion rate (20 Hz to 20 kHz)  0.005% (8 Ω, 100W)
Frequency characteristic  3 Hz to 100 kHz
Signal-to-noise ratio (IHF-A)  Phono MM:92dB
Phono MC:78dB
Line1, 2, 3 : 110 dB
Balanced:95dB
Input Sensitivity / Impedance  Phono MM : 2.5mV/47k Ω
Phono MC : 0.2mV/100 Ω
Line1, 2, 3 : 200mV/33k Ω
Balanced : 200mV/30k Ω
Phono maximum allowable input (1 kHz, THD 0.03%)  MM:150mV
MC:12mV
Output Level / Impedance  Tape rec : 200mV/430 Ω
Power supply voltage  100 VAC, 50Hz/60Hz
Rated power consumption (Electrical Appliance and Material Control Law)  280W
Power outlet  Power switch interlock : 2 systems, 200W
Power switch not linked : 1 system, 100W
Maximum external dimensions  Width 476x Height 163x Depth 469 mm
Weight  27.6kg
Attachment  Wireless Remote Control
